FEATURES
> Channel mode: DMX 512, 29CH
> Framing shutters: 4x fast and smooth framing shutters, each individually controllable; each blade can block light completely; framing module can be rotated at ±90°
> Color wheel: 5 colors + CTO+white, split colors
> Rotated gobo wheel :7 rotating gobos+ white,rainbow effect,gobo shake(Pluggable replacment gobo)
> Prism wheel :3 facet prism----Customizable Prism (adjustable rotating speed and forward and reverse direction)
> Frost:frost wheel
> Aperture:electric aperture
> Strobe: 1-20Hz/s
> Dimmer: Variable electronic dimmer(0-100%)
> Focus: Variable motorized focus
> Beam angel:4°-50°
> Diameter of lens: 145mm
> Control mode:DMX512,RDM,Sound,Master/Slave,Auto
> Pan:540°/360°/180°，8/16 bit movement resolution,
> Tilt:270°/180°/90°，8/16 bit movement resolution
> Integrated three features:beam,spot,wash and framing
CONSTRUCTION

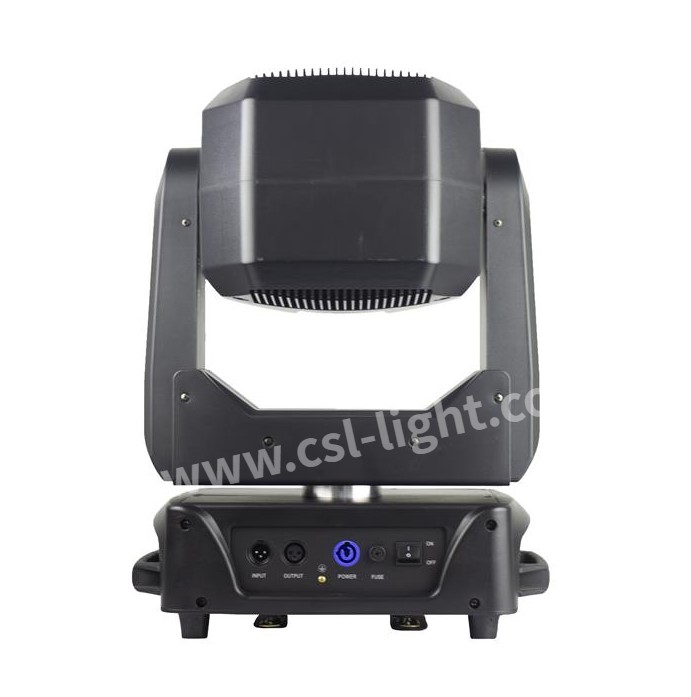

> Data in/out:3-pin XLR connector IN/OUT
(Optional 5-pin XLR connector IN/OUT)
> Power in/out:PowerCon IN/OUT
> Motor:XT Three-phase motor
SPECIFICATIONS
> Power supply:AC 100V-240V 60/50Hz
> Power consumption：680W
> Light source:520W white LED
> Color temperature:9500K

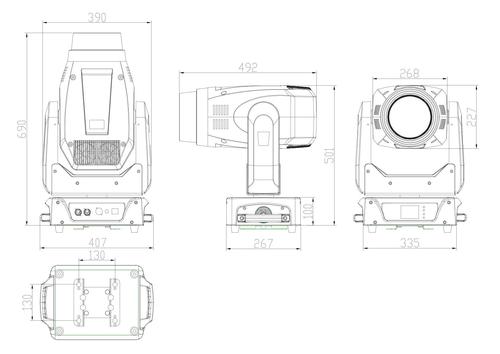

> N.W.:26.9kg > Product meas:407*267*720mm
> G.W.:31.45kg > Packaging meas:490*380*820mm
