FEATURES

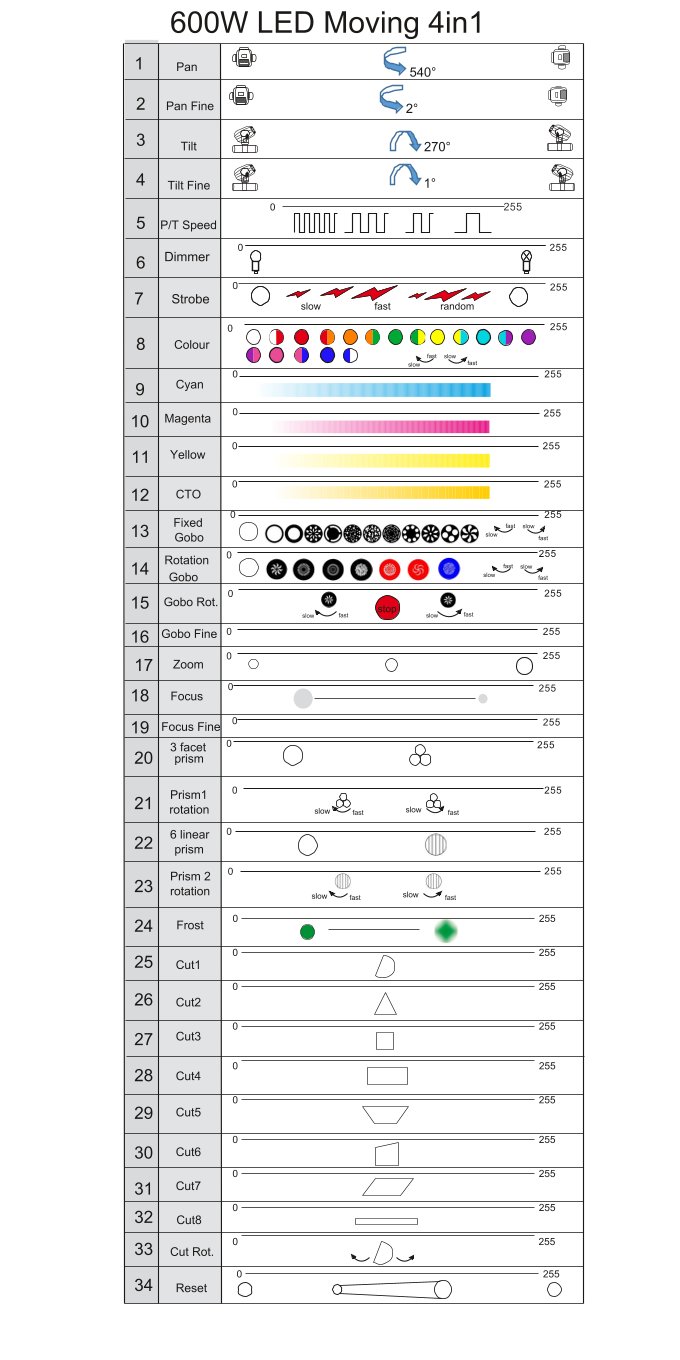

> Channel mode: DMX 512, 34CH
> Framing shutters: 4x fast and smooth framing shutters, each individually controllable;
each blade can block light completely; framing module can be rotated at ±90°
> Color mixing system:CMY+CTO
> Color wheel: 8 colors +white, split colors
> Rotated gobo wheel :7 rotating gobos+ white,rainbow effect,gobo shake
(Pluggable replacment gobo)
> Fixed gobo wheel:11 fixed gobos+ white,rainbow effect,gobo shake
> Prism wheel :3 facet prism----Customizable Prism
(adjustable rotating speed and forward and reverse direction)
> Frost:frost wheel
> Strobe: 1-20Hz/s
> Dimmer: Variable electronic dimmer(0-100%)
> Focus: Variable motorized focus
> Beam angel:4°-50°
> Diameter of lens: 145mm
> Control mode:DMX512,RDM,Sound,Master/Slave,Auto
> Pan:540°/360°/180°，8/16 bit movement resolution,
> Tilt:270°/180°/90°，8/16 bit movement resolution
> Integrated four features:beam,spot,wash and CMY+ framing
CONSTRUCTION

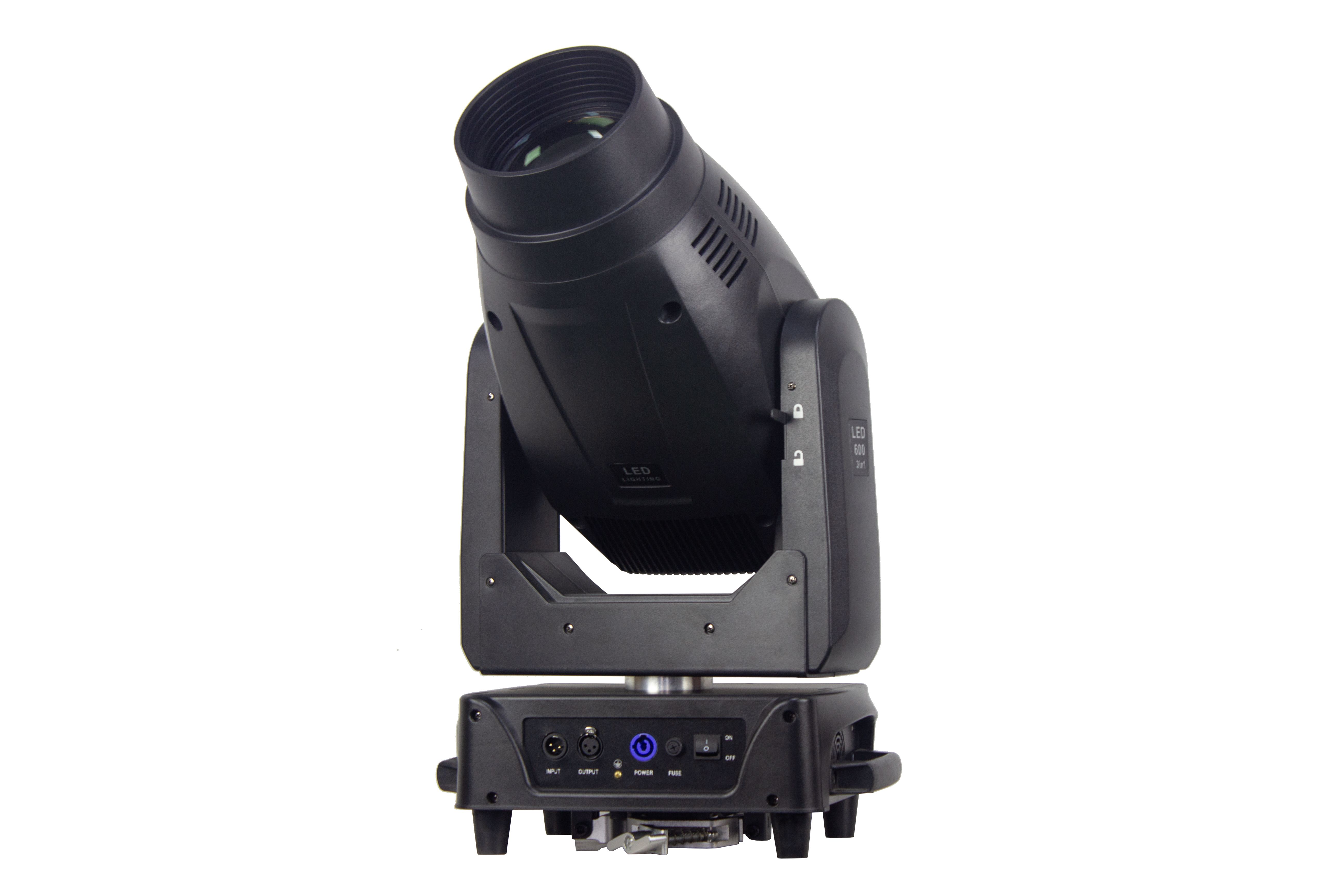

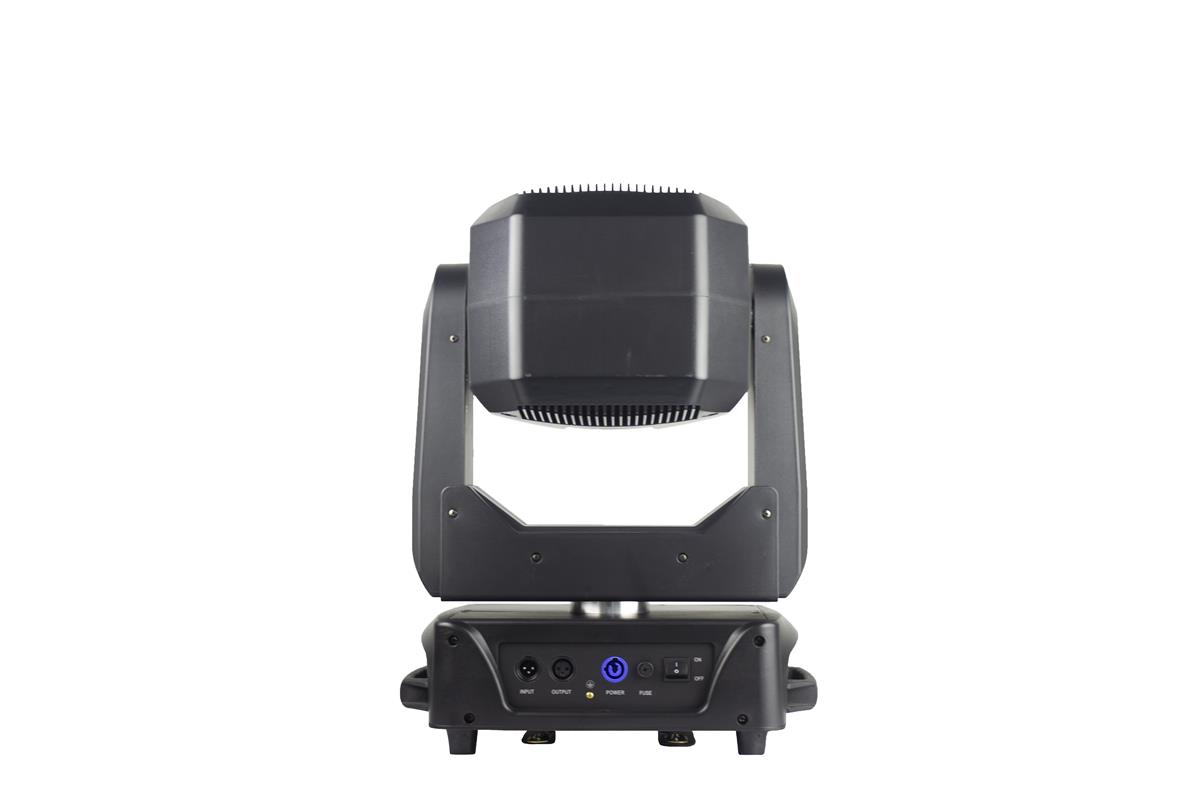

> Data in/out:3-pin XLR connector IN/OUT
(Optional 5-pin XLR connector IN/OUT)
> Power in/out:PowerCon IN/OUT
> Motor:XT Three-phase motor
SPECIFICATIONS
> Power supply:AC 100V-240V 60/50Hz
> Power consumption：760W
> Light source:600W white LED
> Color temperature:9500K
> N.W.:28.6kg
> Product meas:407*267*720mm
