FEATURES

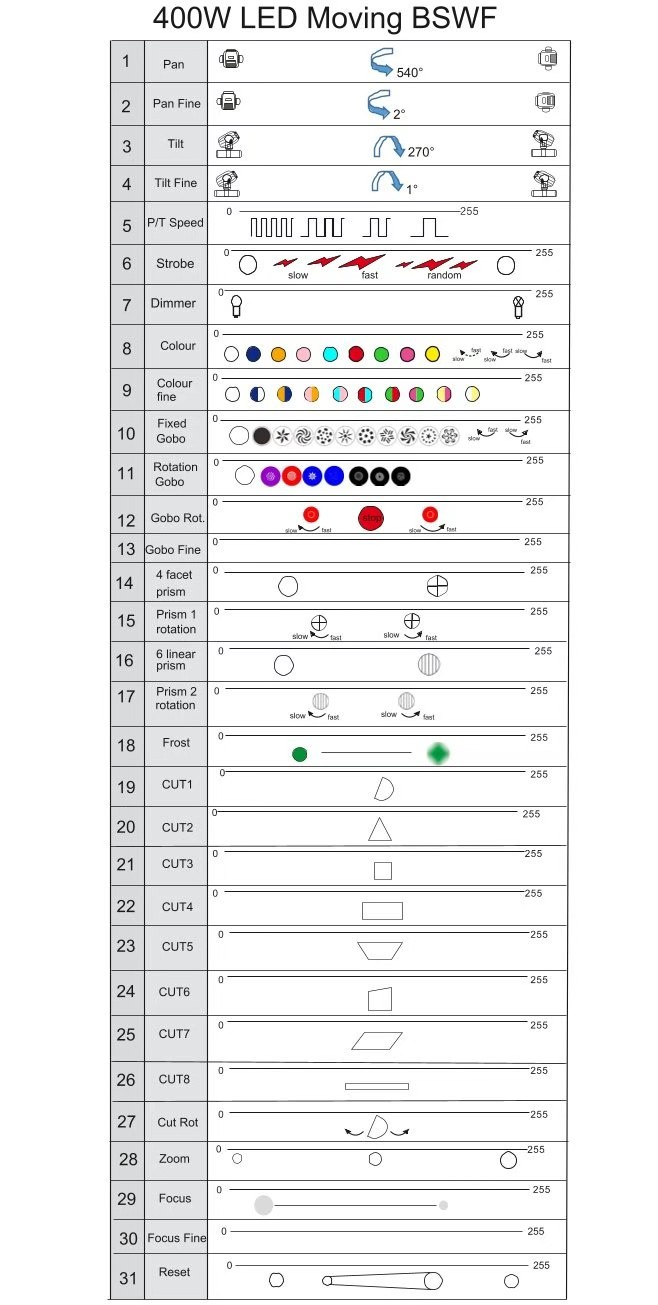

> Channel mode: DMX 512, 31CH
> Framing shutters: 4x fast and smooth framing shutters, each individually controllable; each blade can block light completely; framing module can be rotated at ±90°
> Color wheel: 8 colors + white, split colors
> Rotated gobo wheel :7 rotating gobos+ white,rainbow effect,gobo shake(Pluggable replacment gobo)
> Fixed gobo wheel:10 fixed gobos+white,rainbow effect,gobo shake
> Prism wheel :4 prism and 6 linear prism,two prisms can be overlapped (adjustable rotating speed and forward and reverse direction)
> Frost:frost wheel
> Strobe: 0-20Hz/s
> Dimmer: Variable electronic dimmer(0-100%)
> Focus: Variable motorized focus
> Beam angel:3°-35°
> Diameter of lens: 108mm
> Control mode:DMX512,RDM,Sound,Master/Slave,Auto
> Pan:540°/360°/180°，8/16 bit movement resolution,
> Tilt:270°/180°/90°，8/16 bit movement resolution
> Integrated four features:beam,spot,wash and framing
CONSTRUCTION

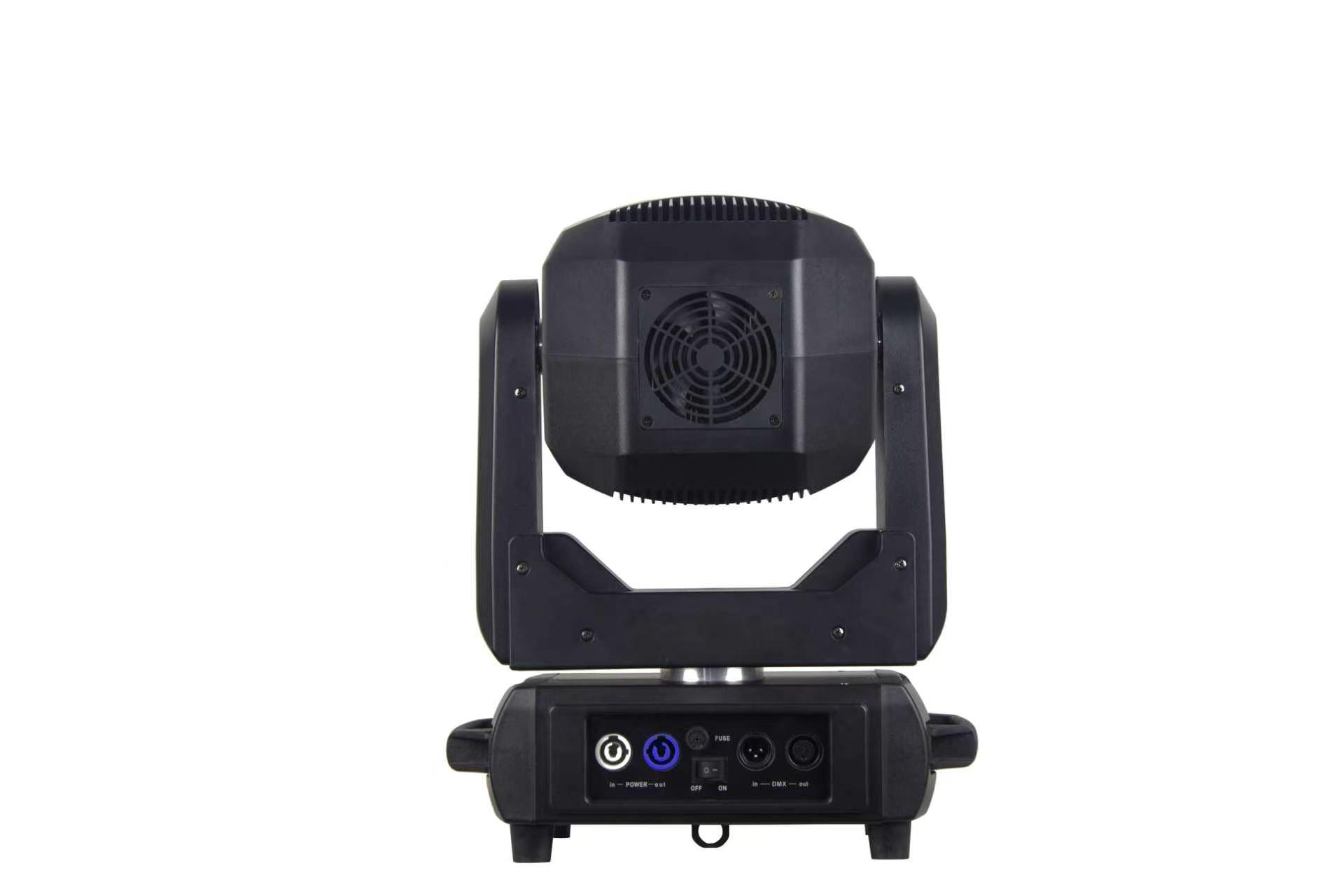

> Data in/out:3-pin XLR connector IN/OUT
(Optional 5-pin XLR connector IN/OUT)
> Power in/out:PowerCon IN/OUT
> Motor:XT Three-phase motor
SPECIFICATIONS
> Power supply:AC 100V-240V 60/50Hz
> Power consumption:500W
> Light source:400W white LED
> Color temperature: 7500K-8500K
> N.W:18.89kg

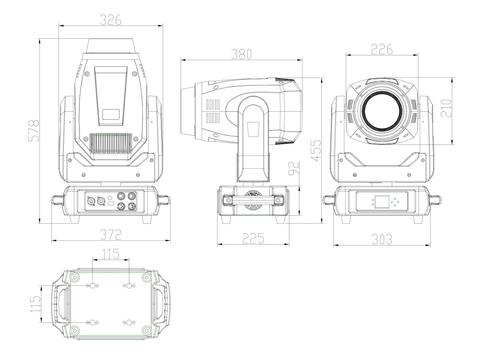

> Product meas:372*225*578mm
